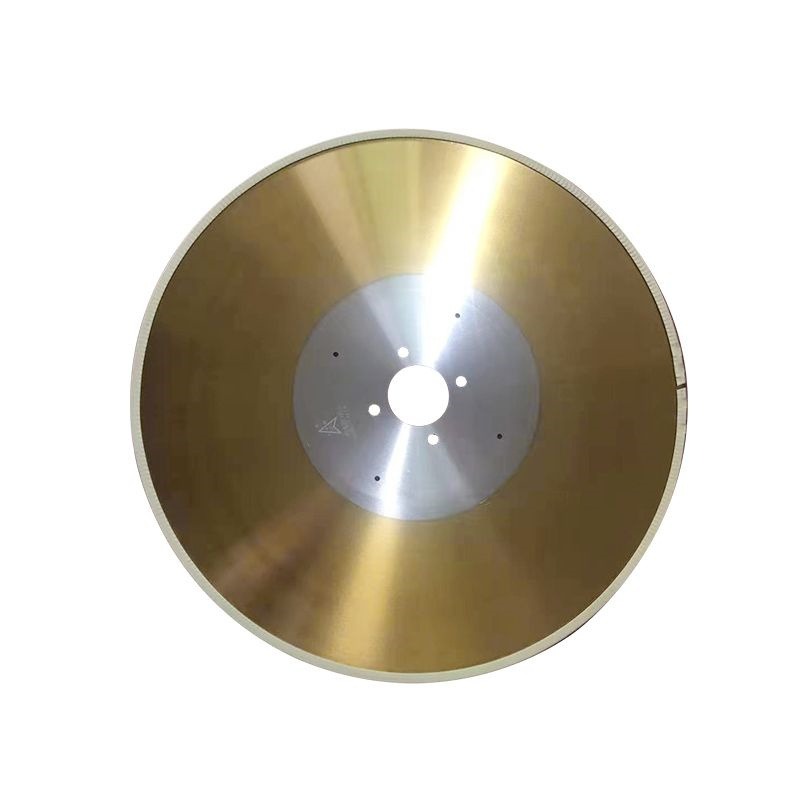

KWI HSS Circular Saw Blades: Sizes, Specifications and Pipe Cutting Applications
Searching for an HSS saw blade manufacturer in Gurugram? Looking for a circular metal cutting blade, pipe cutting blade or cold saw blade? Khandelwal Industries—KWI manufactures circular saw blades for industrial cutting requirements, with standard and customised specifications matched to your machine and material.
Understanding HSS Saw Blade Specifications
A specification such as 300 × 2 × 32 × 220 BW means:
• 300mm: Outside blade diameter
• 2mm: Nominal blade thickness
• 32mm: Arbour bore or centre hole diameter
• 220: Number of cutting teeth
• BW: Tooth profile
When ordering a replacement saw blade, check each measurement along with the drive pinholes, mounting arrangement and machine’s permitted blade speed.
HSS Saw Blade Sizes to Enquire About
Our discussed product configurations include:
• 300 × 1.6 × 32 × 220 BW — 300mm diameter, 1.6mm thickness, 32mm bore and 220 teeth.
• 300 × 2 × 32 × 220 BW — 300mm diameter, 2mm thickness, 32mm bore and 220 teeth.
• 350 × 2 × 32 × 220 BW — 350mm diameter, 2mm thickness, 32mm bore and 220 teeth.
• 350 × 2.5 × 32 × 220 BW — 350mm diameter, 2.5mm thickness, 32mm bore and 220 teeth.
• 400 × 2 × 32 × 220 BW — 400mm diameter, 2mm thickness, 32mm bore and 220 teeth.
• 450 × 3 × 50 × 240 BR — 450mm diameter, 3mm thickness, 50mm bore and 240 teeth.
• 500 × 3 × 50 × 240 BR — 500mm diameter, 3mm thickness, 50mm bore and 240 teeth.
Additional Sizes and Custom Requirements
Enquire about 275mm, 300mm, 350mm, 400mm, 450mm and 500mm HSS saw blades, with thickness options including 1.2mm, 1.6mm, 2mm, 2.5mm and 3mm.
Bore requirements include 32mm, 40mm and 50mm, while tooth counts include 180, 200, 220, 240 and 260 teeth. Confirm the available combination before ordering; every diameter, thickness, bore and tooth count is not necessarily interchangeable.
BW and BR Tooth Profiles
BW teeth feature alternating bevels and are commonly used in tube and section cutting. BR tooth profiles should be specified against your approved drawing or existing blade geometry.
Tooth selection depends on the material grade, pipe diameter, wall thickness and cutting conditions. More teeth do not automatically mean better cutting. Contact us to discuss the required profile and tooth count for your application.
Applications: MS, GI and SS Pipe Cutting
MS pipe cutting blades: Discuss suitable HSS blade specifications for mild steel pipes, tubes, furniture frames and fabrication components.
GI pipe cutting blades: Select the blade according to the galvanised pipe’s dimensions, steel substrate and machine requirements.
SS pipe cutting blades: Stainless steel applications require careful matching of HSS grade, tooth geometry, coating, coolant and operating parameters. Confirm suitability for your stainless steel grade before ordering.
HSS Blade Coatings and Surface Treatments
Common industry options include steam treatment, TiN, TiCN and TiAlN coatings. These treatments serve different purposes involving lubrication, wear resistance, friction and heat resistance. Ask Khandelwal Industries about the coating and HSS grade available for your selected specification.
Cold Saw Blades and Ordering Enquiries
Cold saw blades are also available. For product selection and quotations, send your machine model, existing blade dimensions, material grade, pipe diameter, wall thickness, tooth profile and required quantity.
Contact Khandelwal Industries—KWI
Call 9625794957 or 7428410455
